SCROLL / DRUM TYPE · MODEL VDL

VDL–1

Series Scroll Parts Washing Machine

Parts move through a horizontally bedded rotating drum and are washed hands-free by alkali chemical sprayed through nozzles, then dried in the same cycle.

  • VDL40
  • AISI 304L Stainless
  • 85°C
  • CE
Teklif Alın Teknik Özellikler

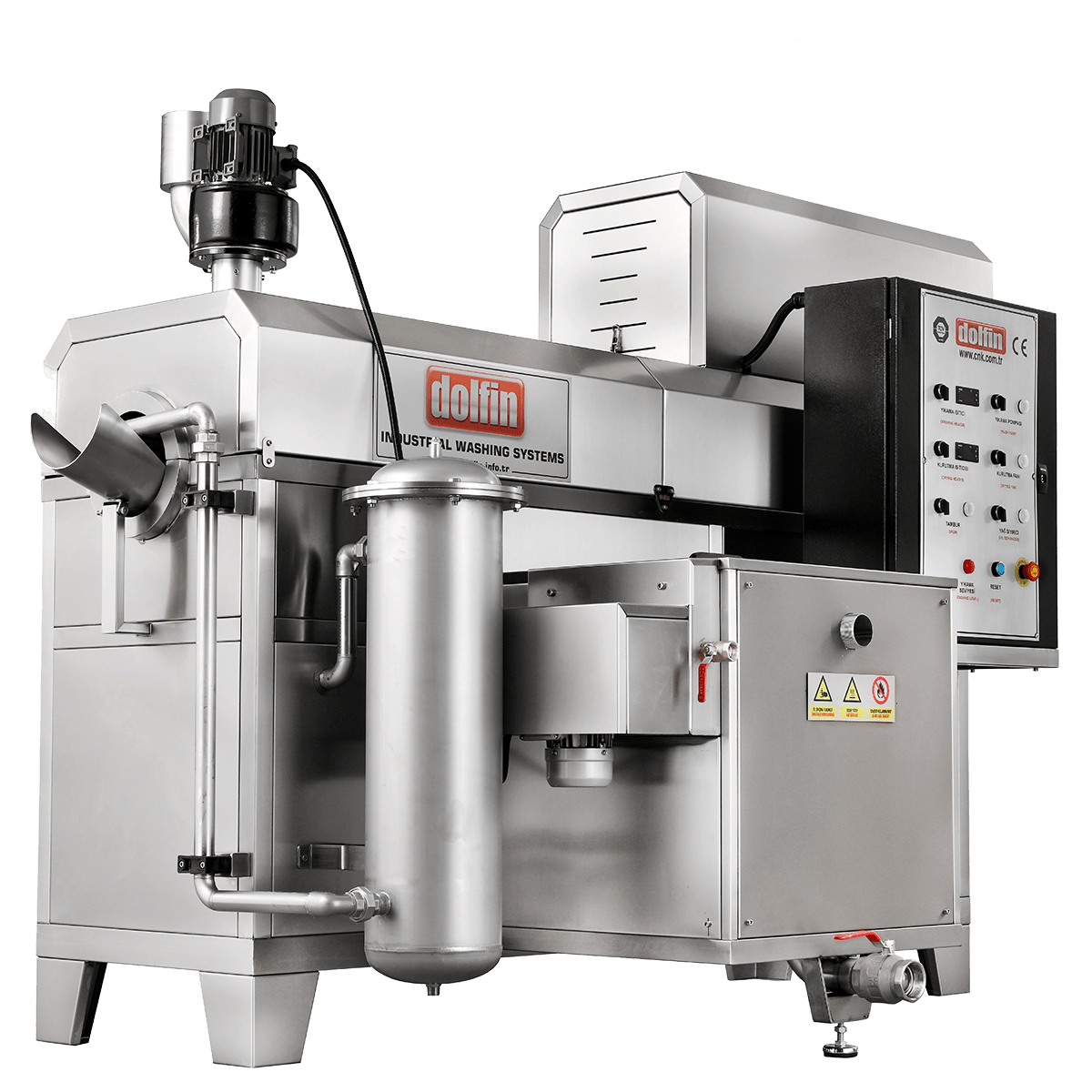

Dolfin VDL-1 scroll type parts washing machine
⌀400mmDrum Diameter
2000mmDrum Length
600kg/hourMax Working Load
85°CCleaning Temperature
1Number of Tanks

WORKING PRINCIPLES

Rolling drum,
hands-free cleaning.

The parts are poured into a horizontally bedded scroll and, while moving through the spiral toward the outlet, they are washed by alkali chemical pulverized via nozzles. Because each part rotates and rolls inside the drum, every piece is cleaned — and dried after the wash.

  1. 01

    Inlet Loading

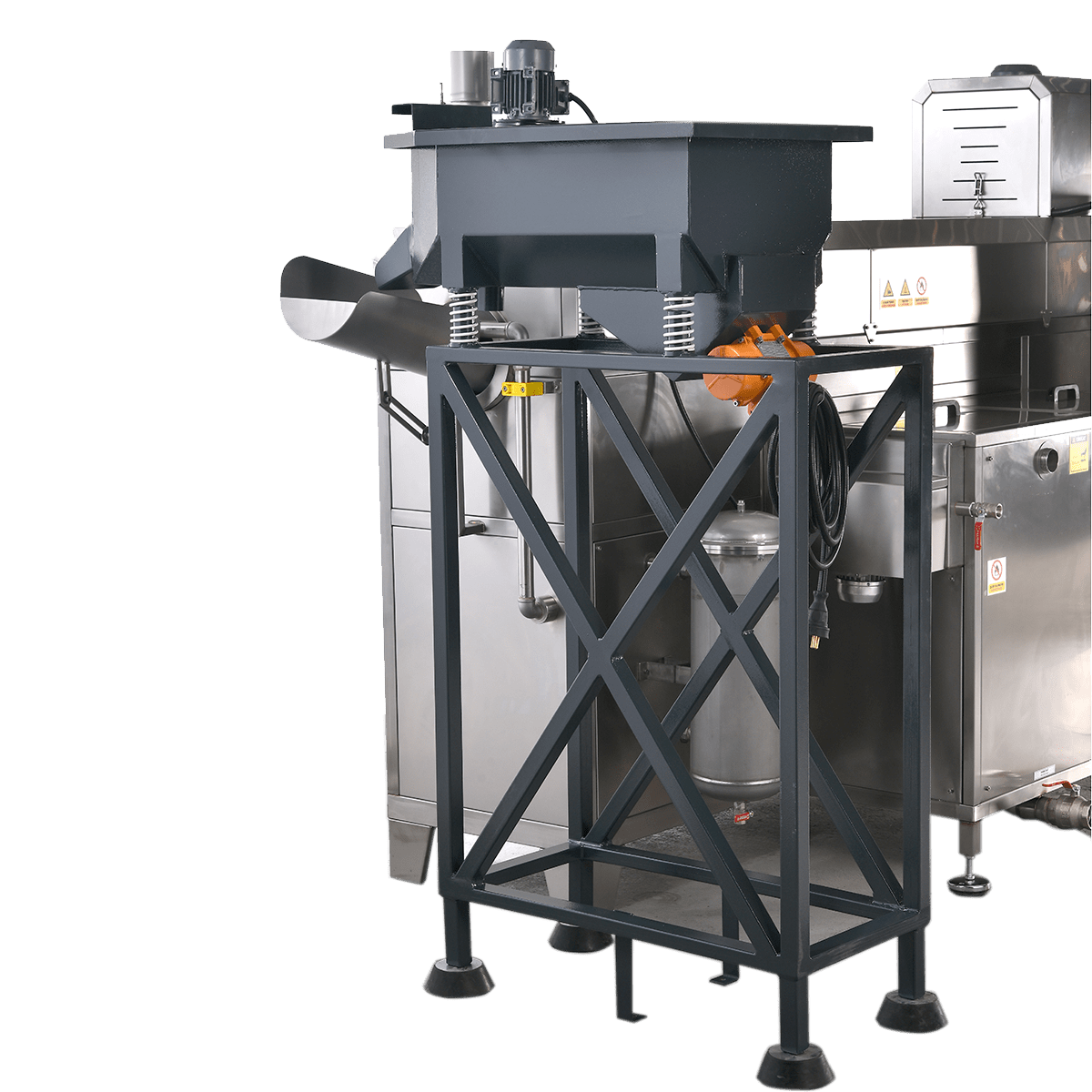

    Parts are poured into the horizontally bedded scroll drum through the inlet port.

  2. 02

    Spiral Transport

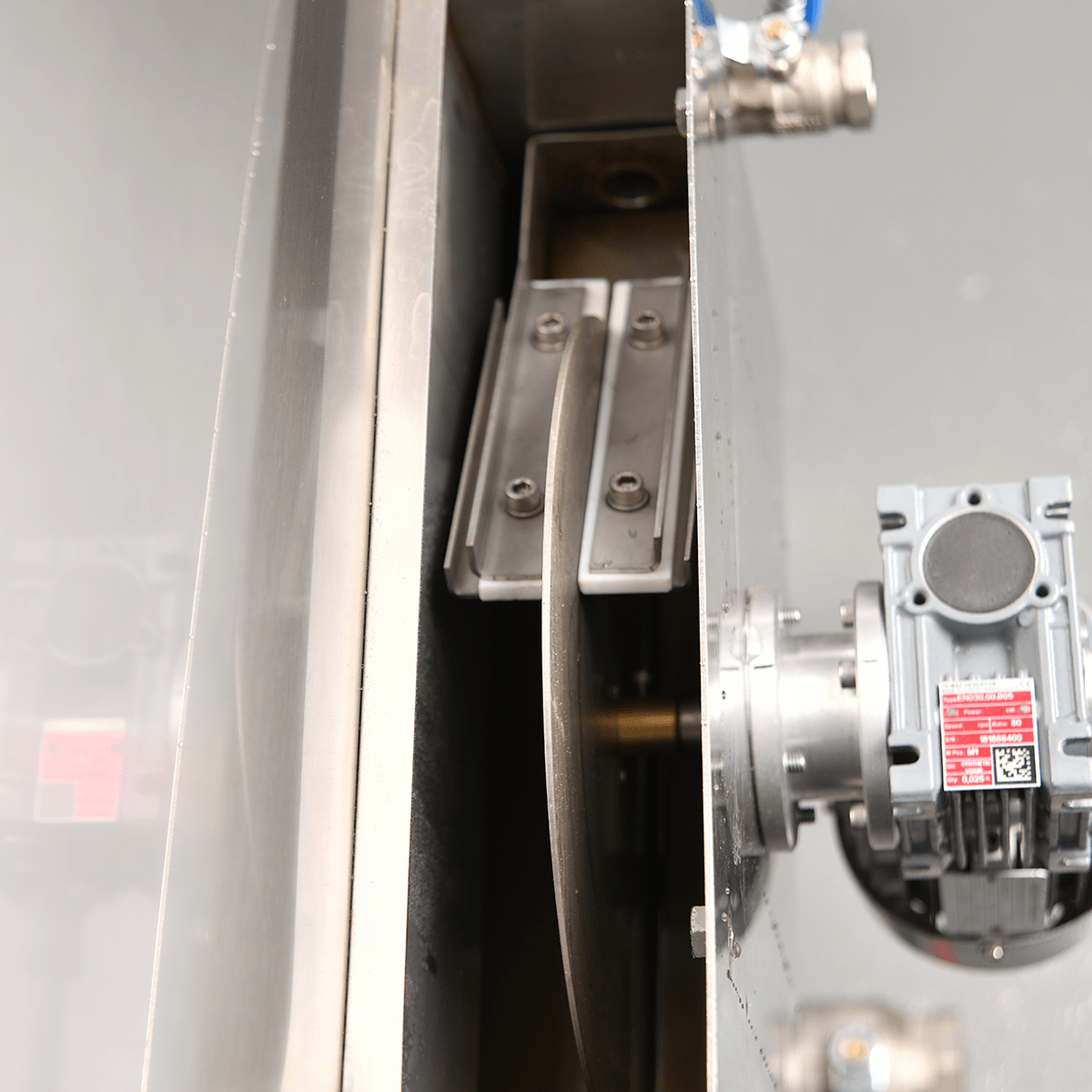

    The spiral carries the parts steadily toward the outlet port of the machine.

  3. 03

    Nozzle Wash

    Alkali chemical is pulverized onto the parts through nozzles for full-surface cleaning.

  4. 04

    Rotate & Dry

    The rotating, rolling drum washes every piece, which is then dried in the same cycle.

TECHNICAL SPECIFICATIONS

One model,
one standard.

ALL VALUES · ⌀ DRUM · V-Hz · °C

DESCRIPTION UNIT VDL40 2500-1B
Max Working Load kg/hour 600
Drum Diameter mm 400
Drum Length mm 2000
Cleaning Temperature °C 85
Voltage V-Hz 380-50
Number of Tanks unit 1
E-Catalogue Get Offer

FEATURES

Standard, optional
and the Dolfin edge.

STANDART Standard Features

  • AISI-304 Stainless Steel Main Body
  • AISI 304 K Stainless Steel Tank
  • AISI-304 Stainless Steel Electro-Pump
  • Electrical Resistance Heater
  • Mechanically Driven Washer Basket
  • Tank Heat Insulation
  • Tank Level Protection
  • Dual Filtration
  • Automatic Washing Cycle
  • Emergency Stop Button
  • Digital Indicator
  • Drier
  • Adjustable Drum Speed
  • Temperature Controller

OPSİYONEL Optional Features

  • Oil Scraper (Disc Type)
  • Automatic Tank Discharge Unit
  • Automatic Part Loading
  • Precise Filtration
  • Automatic Tank Filling
  • Vapour Exhaust Unit
  • Cascade System Between Warehouses

FEATURES THAT DISTINGUISH DOLFIN

  • Our After-Sales Service
  • Full Compliance to CE Standards
  • AISI 304 L / 1.4301 Stainless Steel Main Body
  • AISI 304 L / 1.4301 Stainless Steel Pump
  • AISI 304 L / 1.4301 Stainless Steel Tank
  • Drum Construction
  • Dual Filtration
  • Precise Filtration
  • Secure Full Protection
  • Wide-Range Functionality

UTILIZATION FIELDS

Targets oil, burr
and surface contaminants.

Used for cleaning oil, burr and contaminants on surfaces, removing stains on metal surfaces, and performing dephosphate processes — with maximum saving on cleaning cost.

  • Bolt Manufacturers
  • Screw Manufacturers
  • Nut Manufacturers
  • Washer Manufacturers
  • Fittings Parts Manufacturers
  • Coupling Manufacturers
  • Automated Parts Manufacturers
  • Automotive Spare Parts
  • Machine & Part Manufacturers
  • Medical Parts & Devices
