TURN TABLE SERIES · MODEL PYM

PYM–1

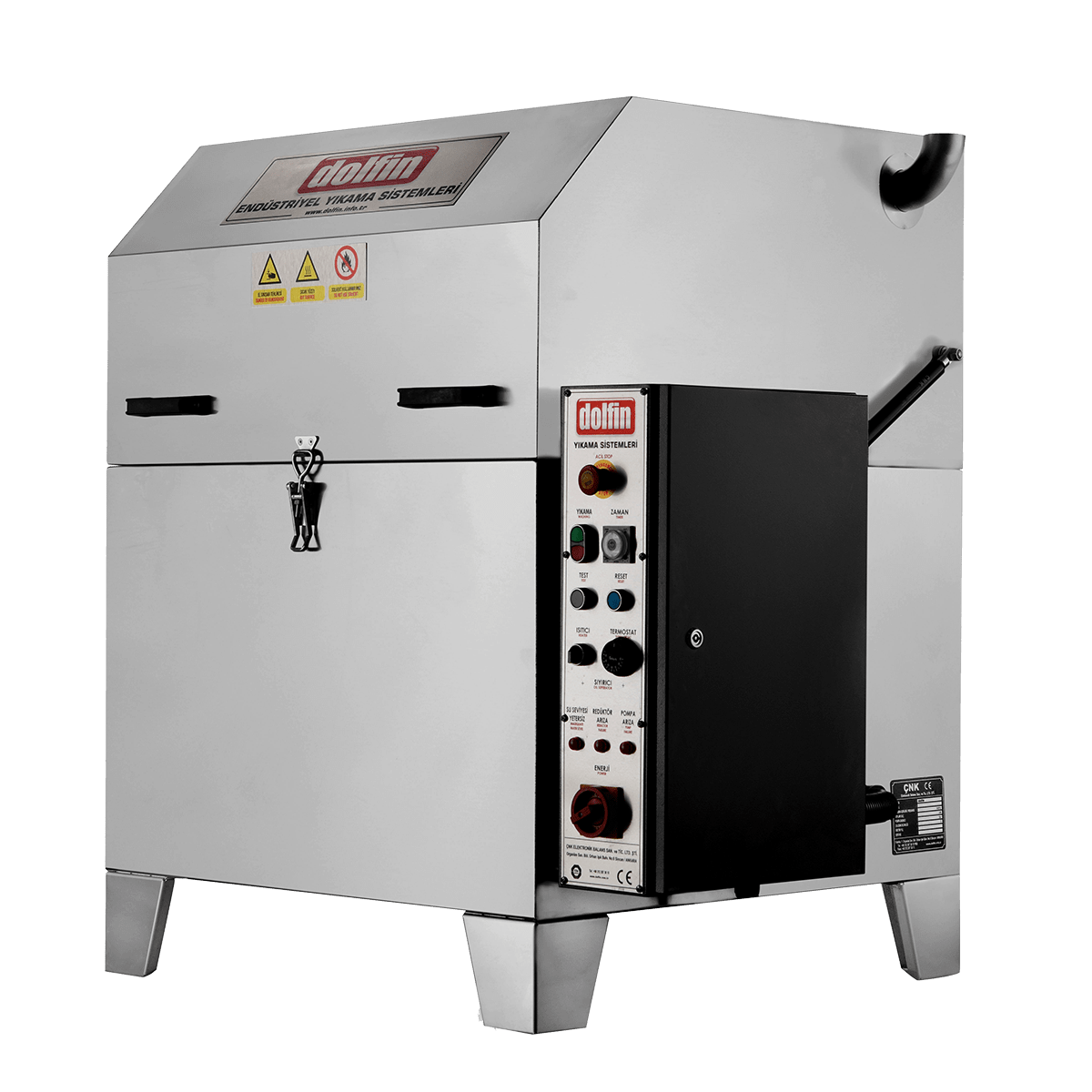

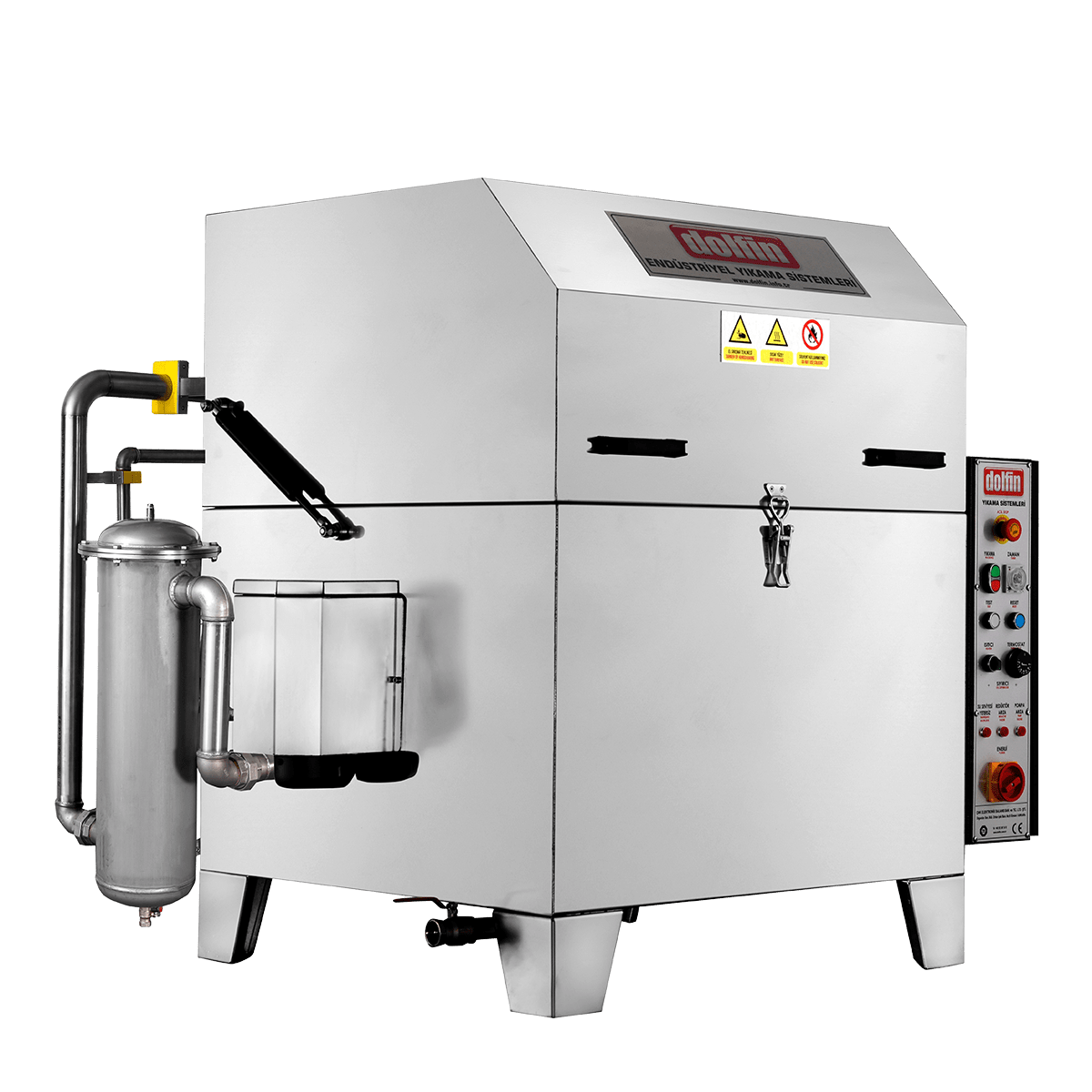

PYM-1 Series Top Loading Turn Table Parts Washers

Washing is done in a completely isolated cabinet, without manual operation. Alkali chemistry water is driven through specifically placed nozzles while the basket rotates to reach the part from up, down and sides.

  • 2 Models
  • AISI 304L Stainless
  • 85°C
  • CE
Teklif Alın Teknik Özellikler
Dolfin PYM-1 turn table parts washing machine
2Model Options
⌀1000mmBasket Diameter
400kgMax. Workload
85°CCleaning Temp.
150LTank Capacity

WORKING PRINCIPLE

Touch-free cleaning
in an isolated cabinet.

During the wash, 2–5% concentration alkali chemistry water is pumped from the tank through an electro stainless steel body pump and reaches every surface of the part.

  1. 01

    Isolated Cabinet

    Washing is carried out in a completely isolated cabinet, without manual operation.

  2. 02

    Stainless Steel Pump

    Alkali chemistry water is pumped from the tank via an electro stainless steel body pump.

  3. 03

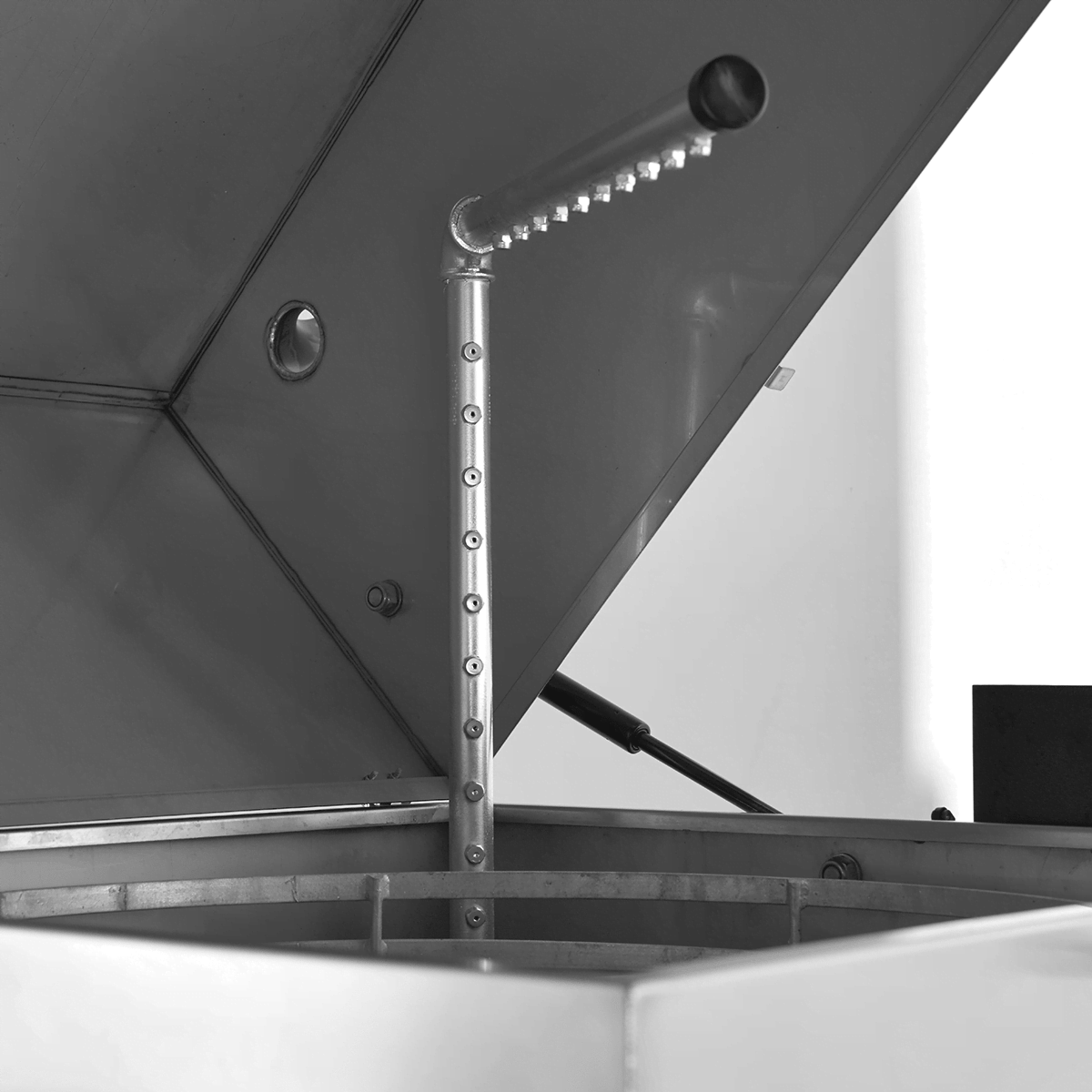

    Nozzle Spraying

    Water penetrates all parts of the dirty part through specifically placed nozzles.

  4. 04

    Turn Table Basket

    The basket rotates around itself to empower the washing effect from up, down and sides.

TECHNICAL SPECIFICATIONS

Two models,
one standard.

ALL VALUES · ⌀ BASKET · V-Hz · °C

Description Unit PYM 950 PYM 1150
Diameter of Basket mm 800 1000
Max. Part Height mm 500 550
Max. Workload kg 200 400
Tank Capacity L 100 150
Pump Power kW 1,1 1,5
Number of Washer psc. 1 2
Voltage V-Hz 380-50 380-50
Cleaning Temperature °C 85 85
Total Power kW 9,5 10
Trolley kW – –
E-Catalogue Machine Layout

FEATURES

What sets Dolfin
apart from its competitors.

STANDART Standard Features

  • Certification in Compliance With CE Standards
  • AISI 304 L / 1.4301 Stainless Steel Main Body
  • AISI 304 L / 1.4301 Stainless Steel Tank
  • AISI 304 L / 1.4301 Stainless Steel Pump

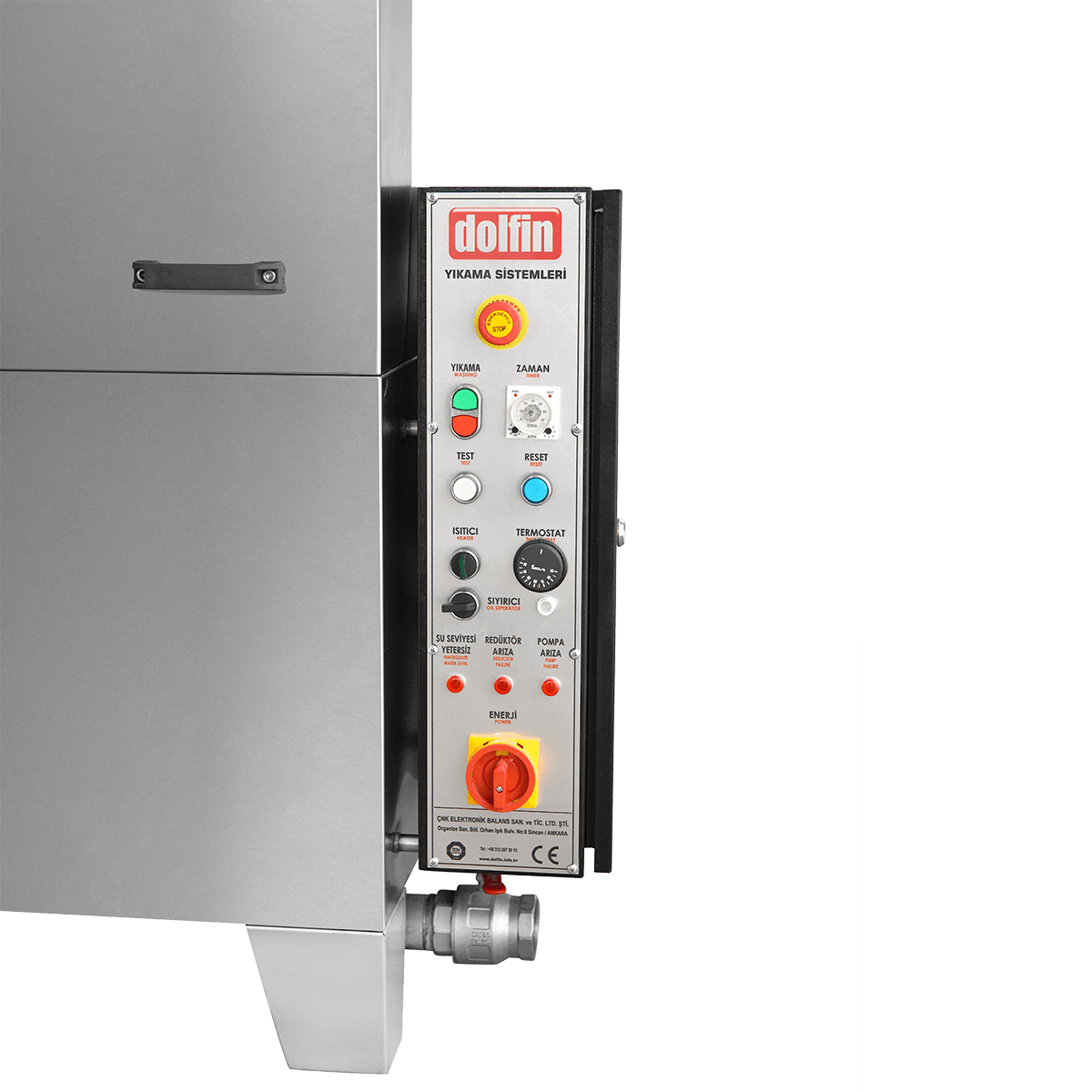

  • Board w/ Failure Alarm
  • Strengthened Washer Basket

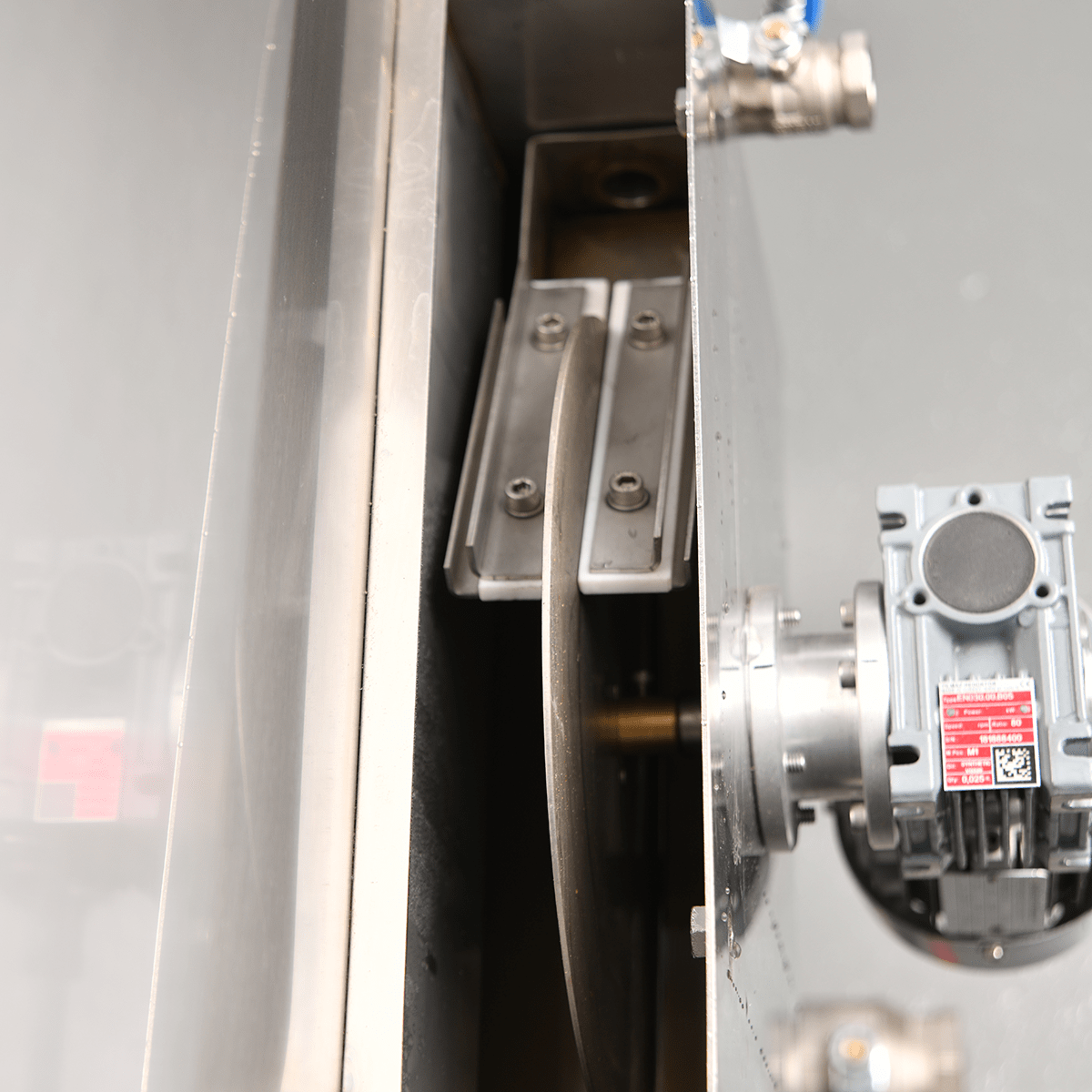

  • Side Driven Washer Basket
  • Stainless Steel Removable Nozzle
  • Dual Filtration System
  • Stainless Steel in Pump Suction
  • Resistance with Steel Heater
  • Water Level Protection
  • Heat Protection
  • Timer
  • Full Protection Against Electric Shock
  • Emergency Stop Button Small Parts Basket
  • Operating Temperature up to 90 Degrees
  • Highly Resistant Special Gasket on Pump
  • Stripeless Cover Construction

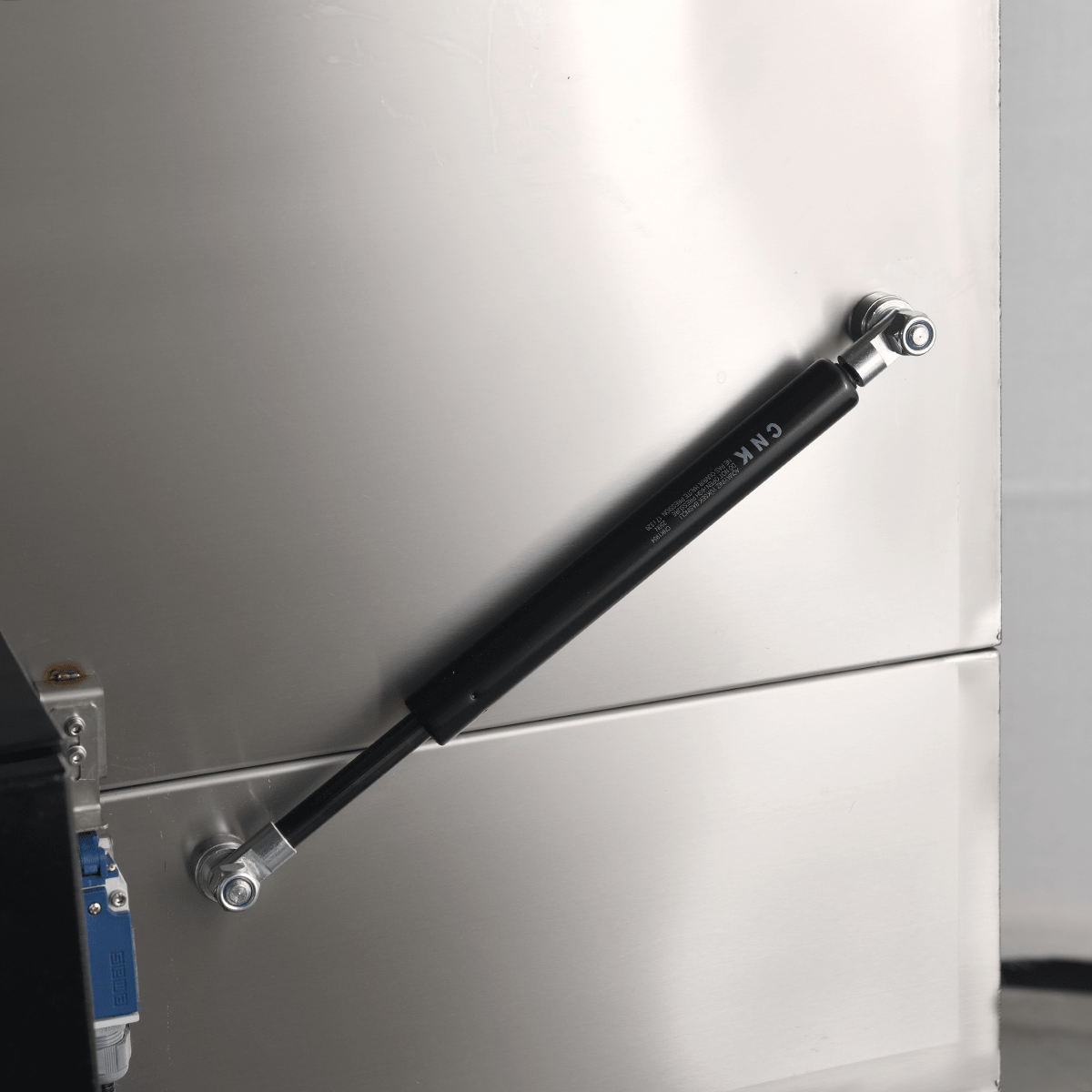

  • Cover with Damper
  • Cover with Mechanical Lock
  • Design with Easy-Maintenance

OPSİYONEL Optional Features

  • AISI 304 Stainless Steel Washer Basket
  • Steam Relief Unit
  • Electronic Interlock
  • Disc Type Oil Scraper
  • Digital Indicator
  • Precise Filtration
  • Drying Unit
  • Body Heat Insulation

DOLFIN ADVANTAGE

  • Manufactured for more than 40 years, with 5,000+ standard or specially designed machines delivered to customers in more than 30 countries across 5 continents.

UTILIZATION FIELDS

Targets oil, burr,
stains and contaminants.

These devices clean oil, burr and contaminants on surfaces, remove stains on metal surfaces, and clean surfaces before welding.

  • Automotive Spare Parts Production
  • Machine & Part Manufacturers
  • Medical Parts & Device Manufacturers
  • Automobile Repair & Maintenance
  • Motor Revision & Rectification
  • Hand Tools Repair & Maintenance
  • Industrial Factory Maintenance
  • Military Maintenance Units
  • Public Maintenance Services
  • Technical Training Institutes
