FRONT LOADING SERIES · MODEL KBN
KBN–1

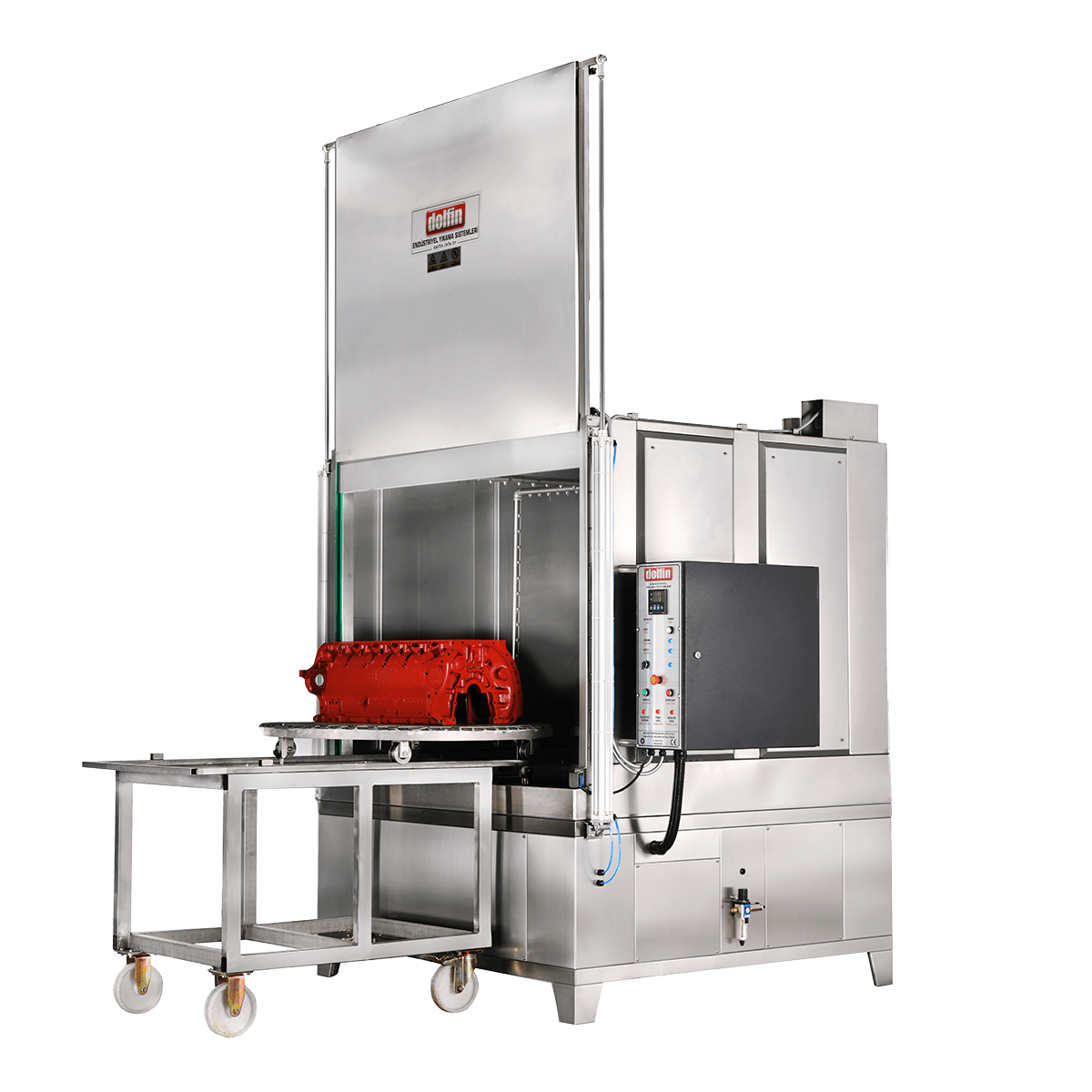

Front Loading Turn Table Parts Washers
Washing is done in a completely isolated cabinet, without manual operation, with the basket rotating to clean from up, down and sides.
- 4 Models
- AISI 304L Stainless Steel
- 85°C
- CE
GALLERY
Engineering from every angle.

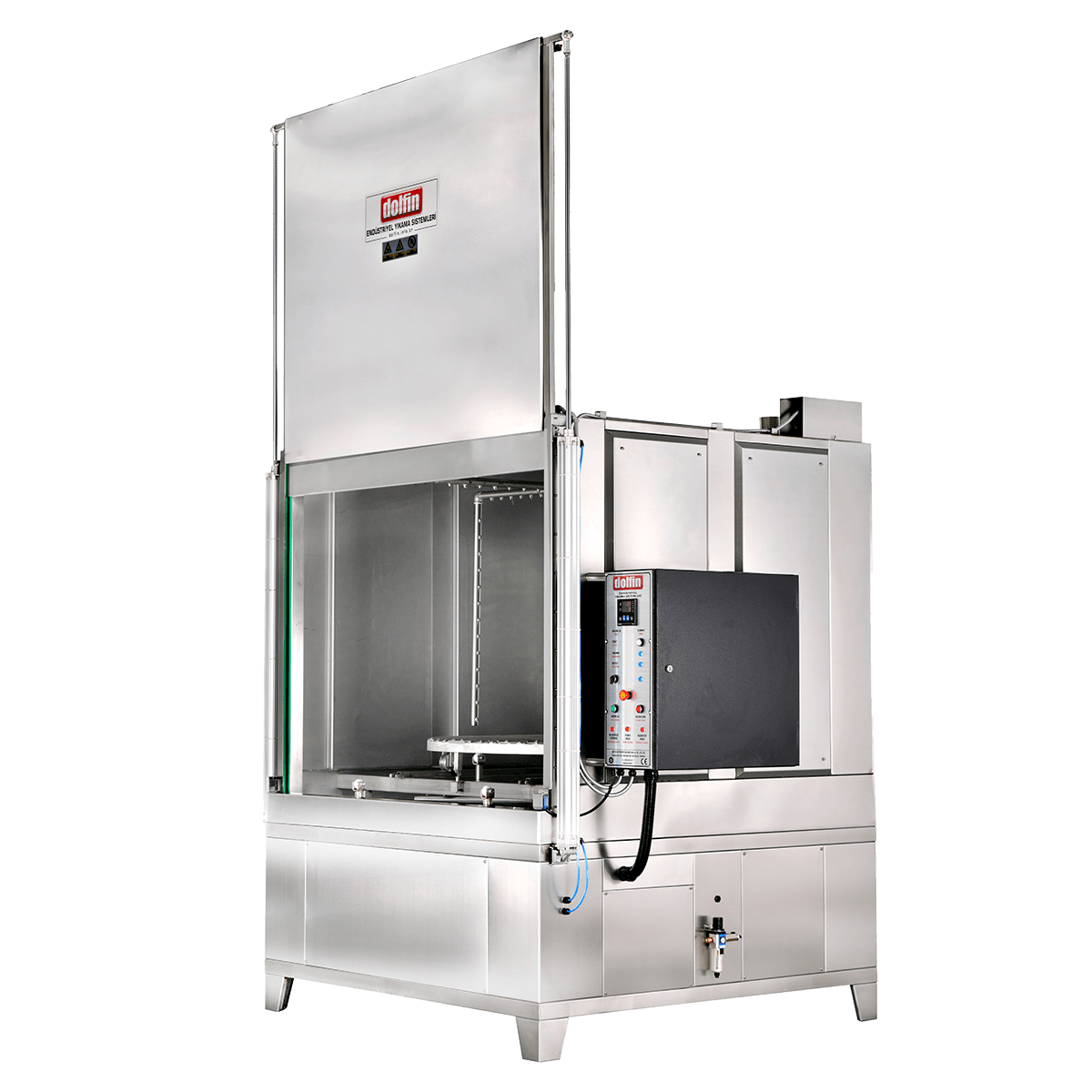

GENERAL VIEW
WORKING PRINCIPLE
Isolated cabinet,
hands-free cleaning.
A 2–5% concentration alkali chemistry water is pumped from the tank through an electro stainless steel body pump and delivered to the part by specifically placed nozzles. Rinsing and drying are handled in the same cabinet, and all parameters can be controlled via PLC.
-
01
Isolated Cabinet
Washing is performed automatically in a completely isolated cabinet, without manual operation.
-
02
Stainless Steel Pump
Alkali chemistry water is pumped from the tank via an electro stainless steel body pump.
-
03
Nozzle Spraying
Specifically placed nozzles deliver water to the part from up, down and the sides.
-
04

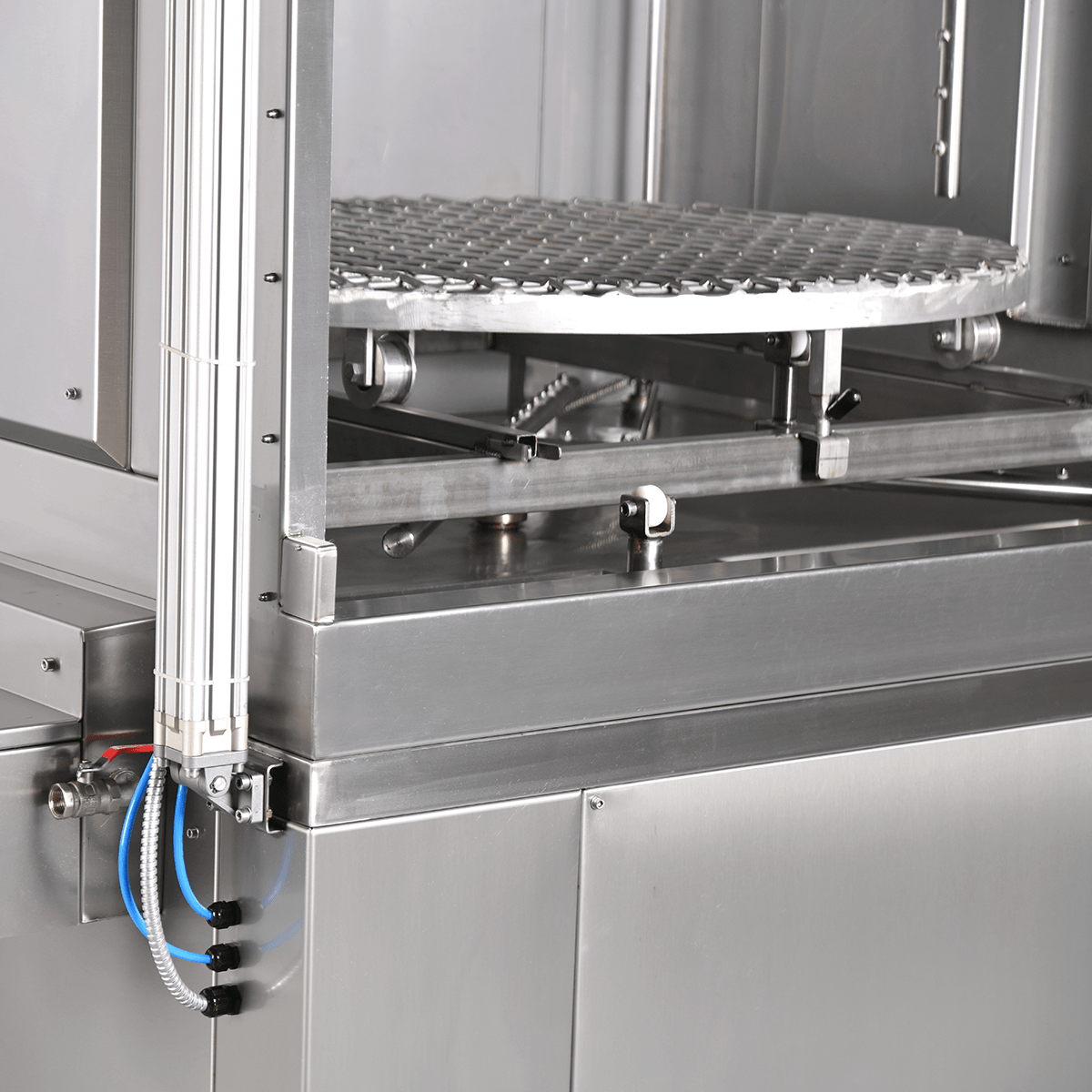

Rotating Basket
The basket rotates around itself to improve the washing effect on over-height parts.
TECHNICAL SPECIFICATIONS
Four models,
one standard.
ALL VALUES · ⌀ BASKET · V-Hz · °C
| Description | Unit | KBN 1550 | KBN 1650 | KBN 1850 | KBN 2050 |
|---|---|---|---|---|---|
| Basket Diameter | mm | 1400 | 1500 | 1700 | 1900 |
| Max. Part Height | mm | 700 | 850 | 850 | 850 |
| Max. Loading Weight | kg | 750 | 1000 | 1250 | 1250 |
| Tank Capacity | lt | 300 | 350 | 350 | 350 |
| Cleaning Time | min | 0-60 | 0-60 | 0-60 | 0-60 |
| Cleaning Temperature | °C | 85 | 85 | 85 | 85 |
| Voltage | V-Hz | 380-50 | 380-50 | 380-50 | 380-50 |
| Total Power | kW | 22 | 22 | 23 | 25 |
FEATURES
Standard, optional
and beyond.
STANDARD Standard Features
- Certification in Compliance With CE Standards

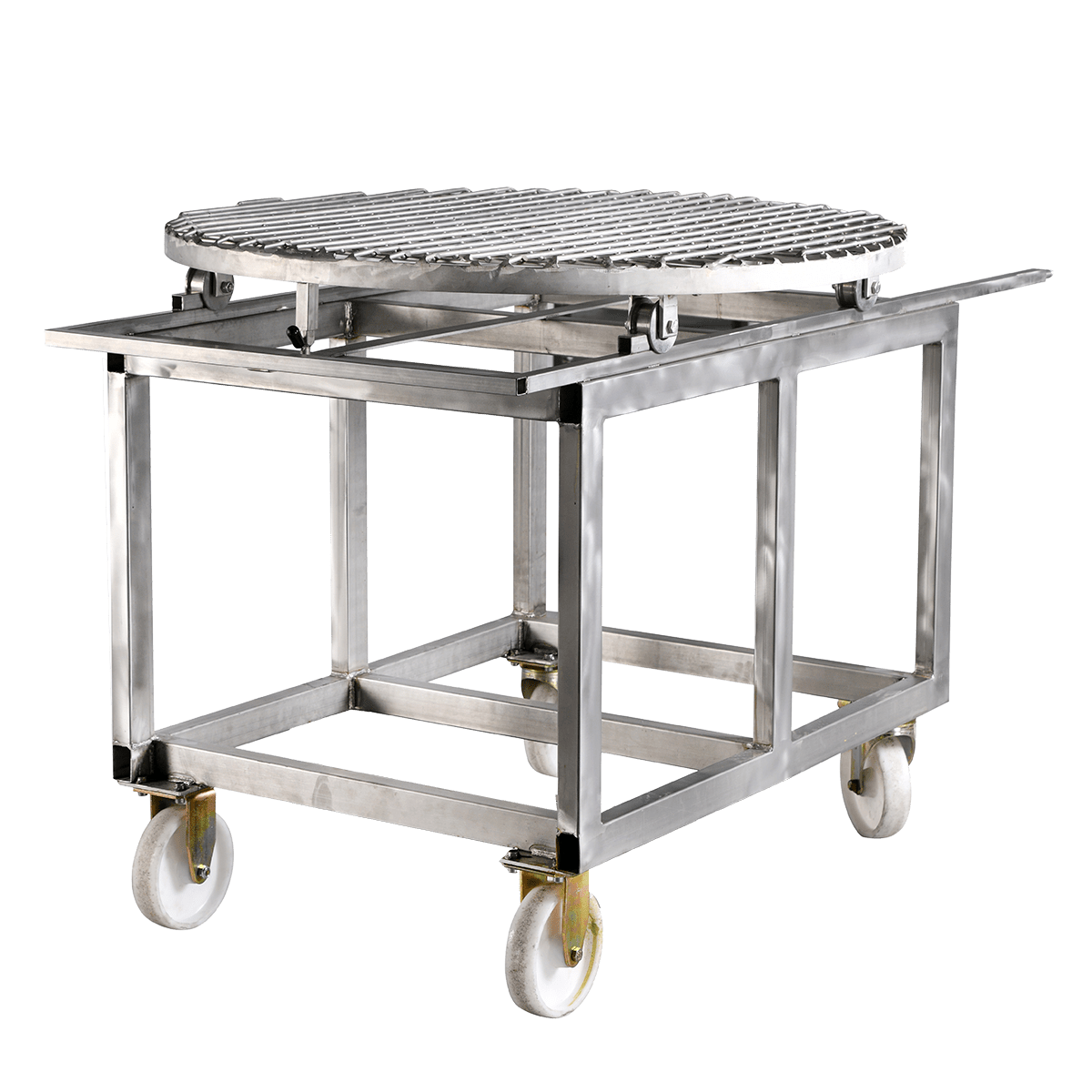

- Trolley
- AISI 304 L / 1.4301 Stainless Steel Main Body
- AISI 304 L / 1.4301 Stainless Steel Tank
- AISI 304 L / 1.4301 Stainless Steel Pump
- Board w/ Failure Alarm
- Strengthened Washer Basket
- Side Driven Washer Basket
- Stainless Steel Removable Nozzle

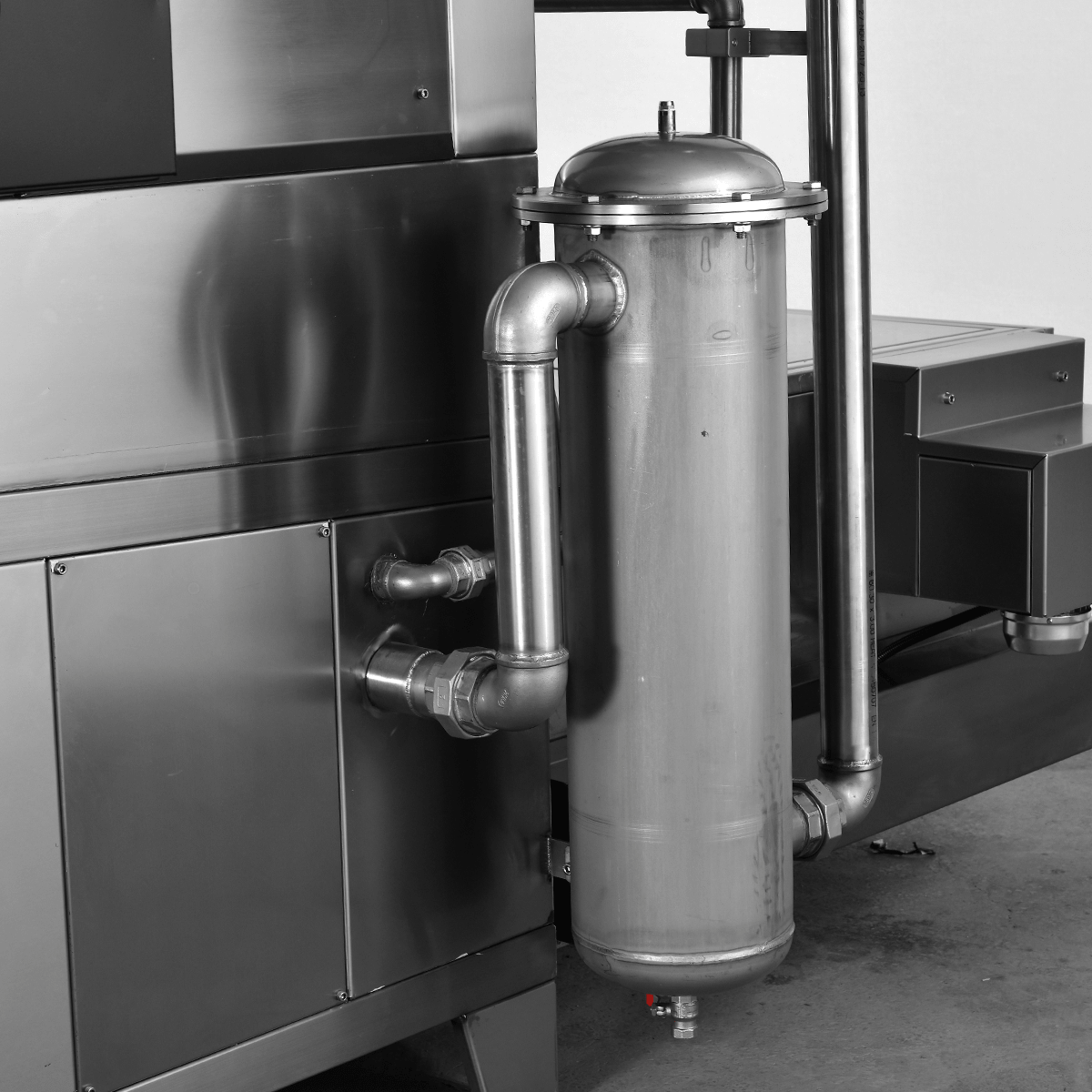

- Dual Filtration System
- Stainless Steel in Pump Suction
- Resistance with Steel Heater
- Water Level Protection
- Heat Protection
- Timer
- Full Protection Against Electric Shock
- Emergency Stop Button & Small Parts Basket
- Operating Temperature up to 90 Degrees
- Highly Resistant Special Gasket on Pump
- Cover with Pneumatic Piston

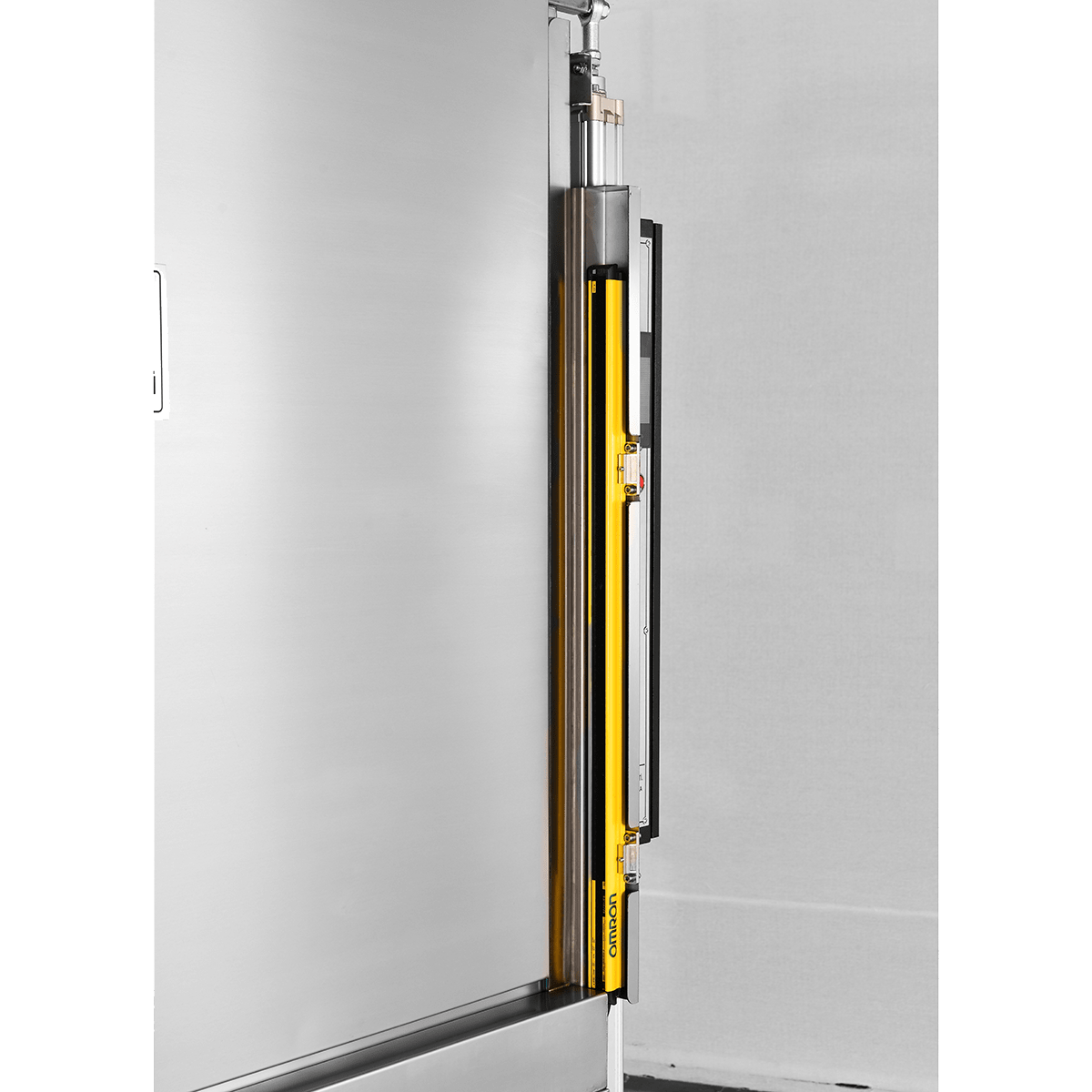

- Infrared Hand Protection
- Digital Indicator

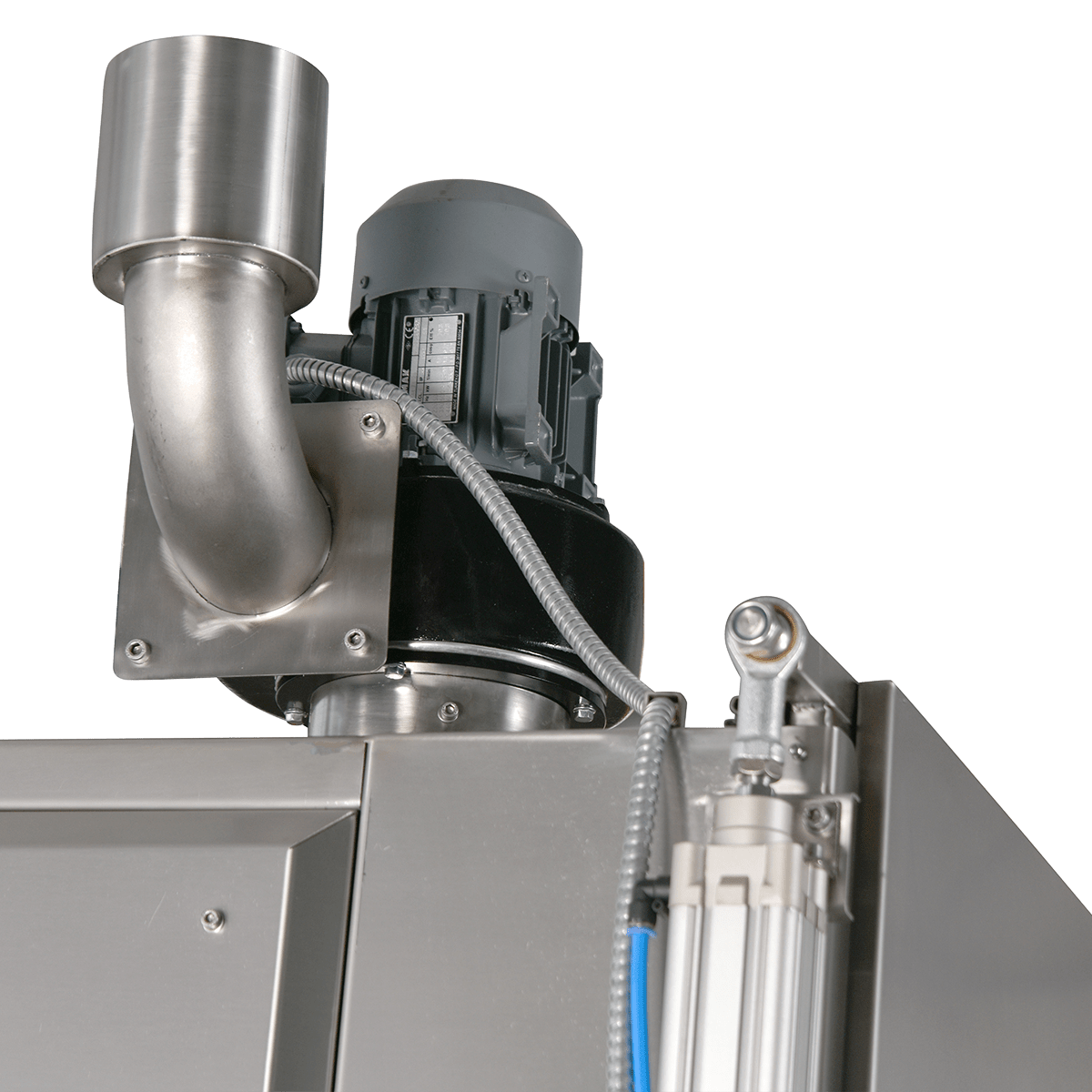

- Steam Relief Fan
- Design with Easy-Maintenance
OPTIONAL Optional Features

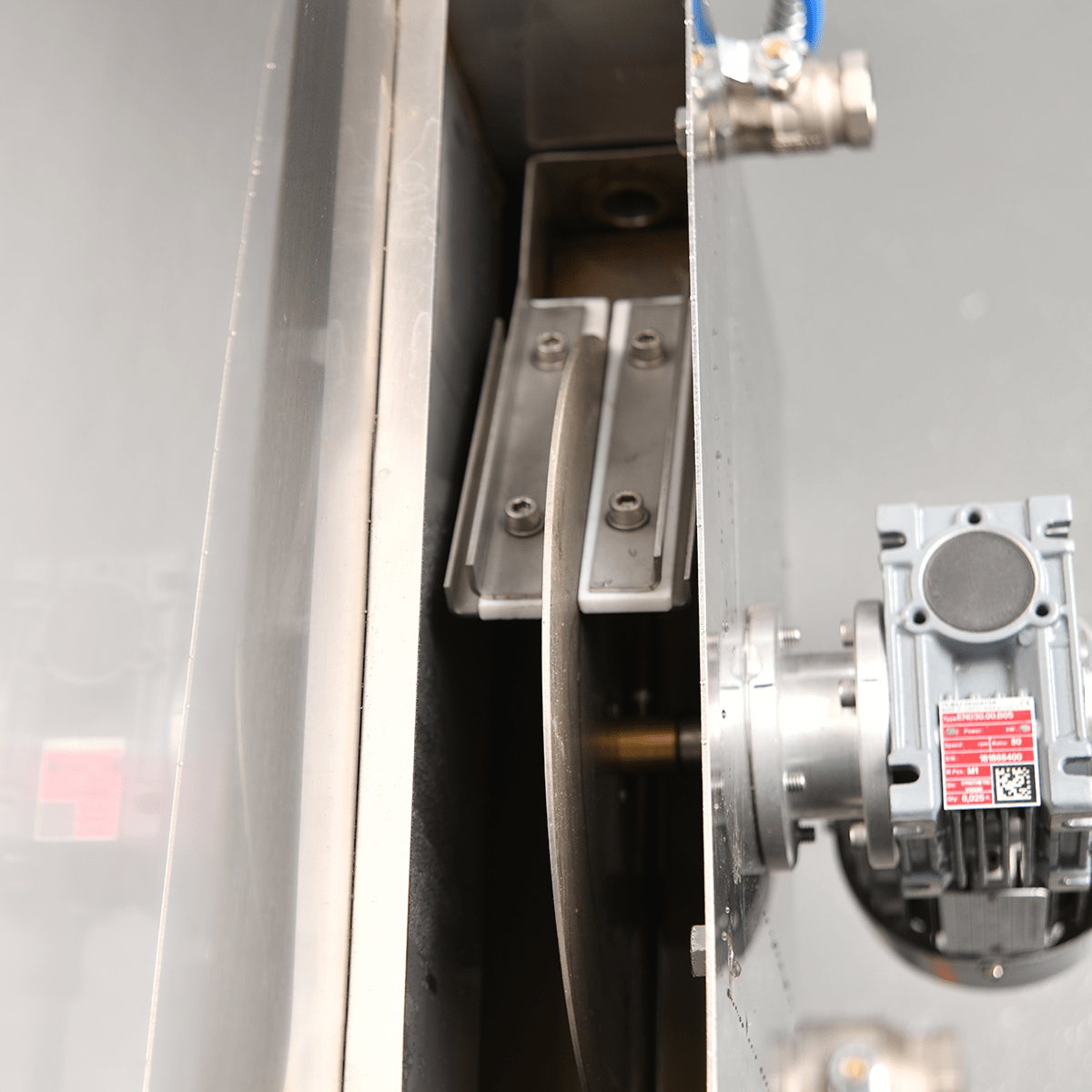

- Oil Scraper (Disc Type)
- Automatic Tank Discharge Unit
- Precise Filtration
- Drier
- Acidic Washing Application
- Automatic Tank Filling
DOLFİN ADVANTAGE
- Our After-Sales Service
- Full Compliance to CE Standards
- AISI 304 L / 1.4301 Stainless Steel Main Body, Pump & Tank
- Reinforced Washer Basket Structure
- Secure Full Protection
- Wide-Range Functionality
UTILIZATION FIELDS
Targets oil, burr
and surface contaminants.
Used to clean oil, burr and contaminants on surfaces, to prepare surfaces before painting, to remove stains on metal surfaces, and to clean surfaces before welding.
- Automotive Spare Parts Production
- Machine & Part Manufacturers
- Medical Parts & Device Manufacturers
- Weapon & Ammunition Manufacturers
- Work Machine Repair & Maintenance
- Bus Maintenance Services
- Truck & Heavy Vehicle Services
- Motor Revision & Rectification
- Industrial Factory Maintenance
- Military Maintenance Units
